New
USS 900 DTK HV UCOOL R23
Product Sheet

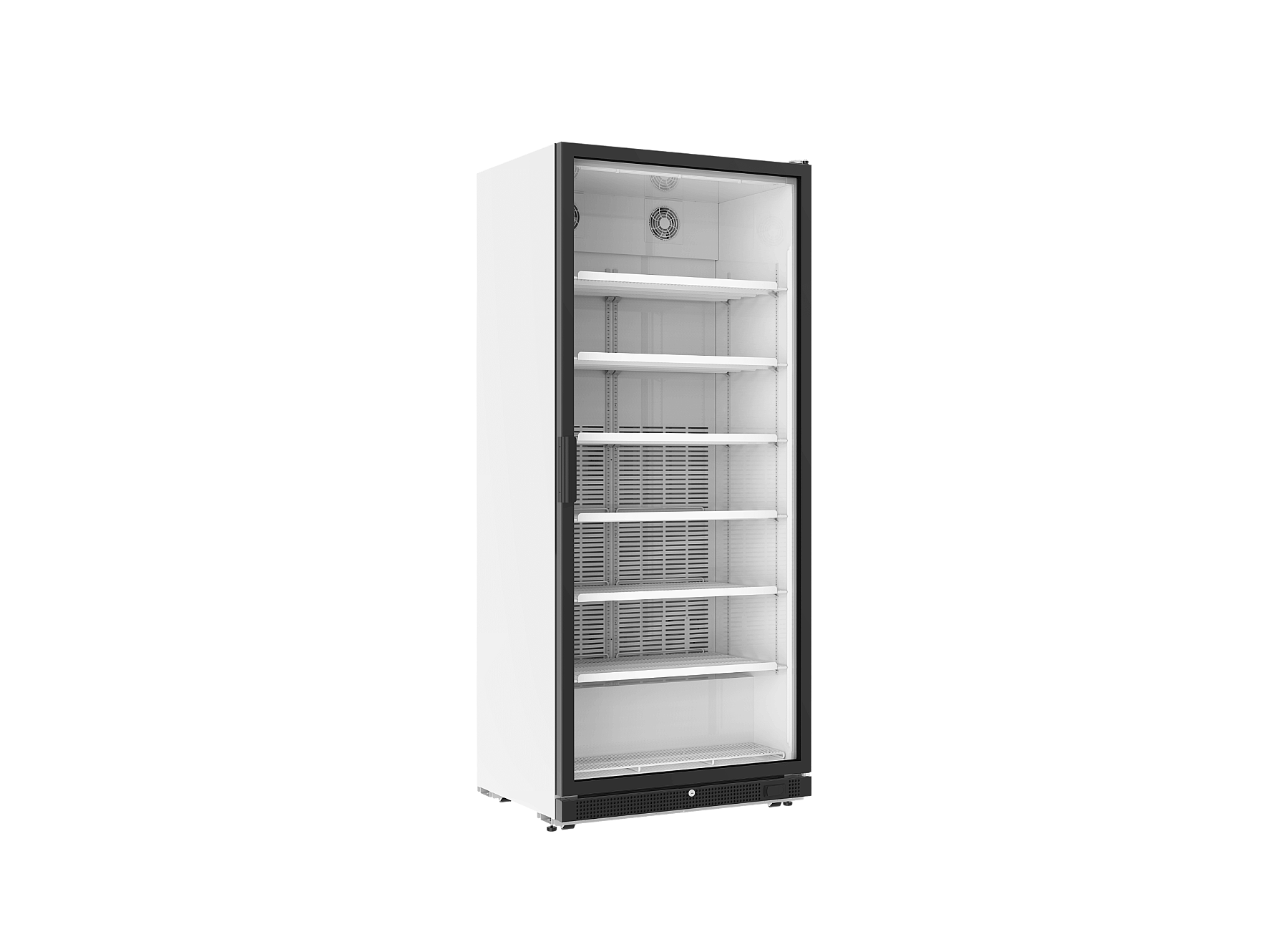

The USS 900 UCOOL is a single-door display cabinet with 903 litres of gross volume and a 1.38 m² display area. Top and side LED lighting, a one-piece shelf and a digital thermostat on the kickplate make it a clear, practical choice for beverage retail. It uses R290 natural refrigerant.
Get a QuoteAdd to Favorite
Product Technical Specifications
Available Energy Class
:
C
Energy Consumption
:
2.27 kWh/24h
Gross Volume (L)
:
903
Net Volume (L)
:
573
Climate Class
:
CC2
Recommended Ambient
:
32.2 – 65 °C
Package Temperature
:
K4 (+1 / +9 °C)
Voltage/Frequency (V/Hz)
:
230/50
Power (W)
:
960
Current (A)
:
5.2
Refrigerant Gas
:
R290
Facing (330 ml can)
:
12 pcs
330 ml cans
:
996 pcs
500 ml cans
:
576 pcs
500 ml bottles
:
540 pcs
Construction
Outer Body
:
DKP
Outer Body Paint
:
White Powder (optional)
Inner Liner
:
Galvanized
Inner Liner Paint
:
White (optional)
Kickplate
:
DKP
Insulation
:
Polyurethane
Insulation Density
:
32 / 36 kg/m3
Dimensions
External Dimensions (W x D x H mm)
:
900 x 732 x 2137
Internal Dimensions (W x D x H mm)
:
823 x 599 x 1901
Shelf (W x D) mm
:
796 x 492
Footprint Area
:
0,66 m2
Display Area
:
1,38 m2
Weight without Packaging (kg)
:
167 (net)
Weight with Packaging (kg)
:
177 (gross)
Standard Equipment and Options
Shelves
:
6 + 1 pcs
Shelf strips
:
6 pcs
Door (W x H) mm
:
895 x 1991
Thermostat
:
Electronic, digital display on kickplate
Interior Lighting
:
Top and side LED (right and left)
Door
:
Aluminum
Door Lighting
:
Optional
Door Glass
:
Double tempered + argon + low-e
Lock
:
Yes
Feet
:
2 plastic feet + 4 wheels
Shelves
:
6 + 1 pcs, with 6 shelf strips
Loading Capacities
Loading Capacity (20')
:
–
Loading Capacity (40')
:
–
Loading Capacity (40' HC)
:
38
Loading Capacity (13.6 Truck)
:
46
One-Piece Shelf for More Display Space
The one-piece shelf design provides a larger, uninterrupted display area, with 1.38 m² of display space for your range.
Easy Access Through a Single Door
A single door gives staff and customers straightforward access to the full interior of the cabinet.
Top and Side LED Lighting
Top and side LED lighting, on both the right and left, presents products evenly and attractively across the display.
Digital Thermostat on the Kickplate
The electronic thermostat with digital display on the kickplate makes temperature settings easy to check and adjust.
