USS 155 DTK R64 CC2 - 1
New

USS 155 DTK R64 CC2

Product Sheet

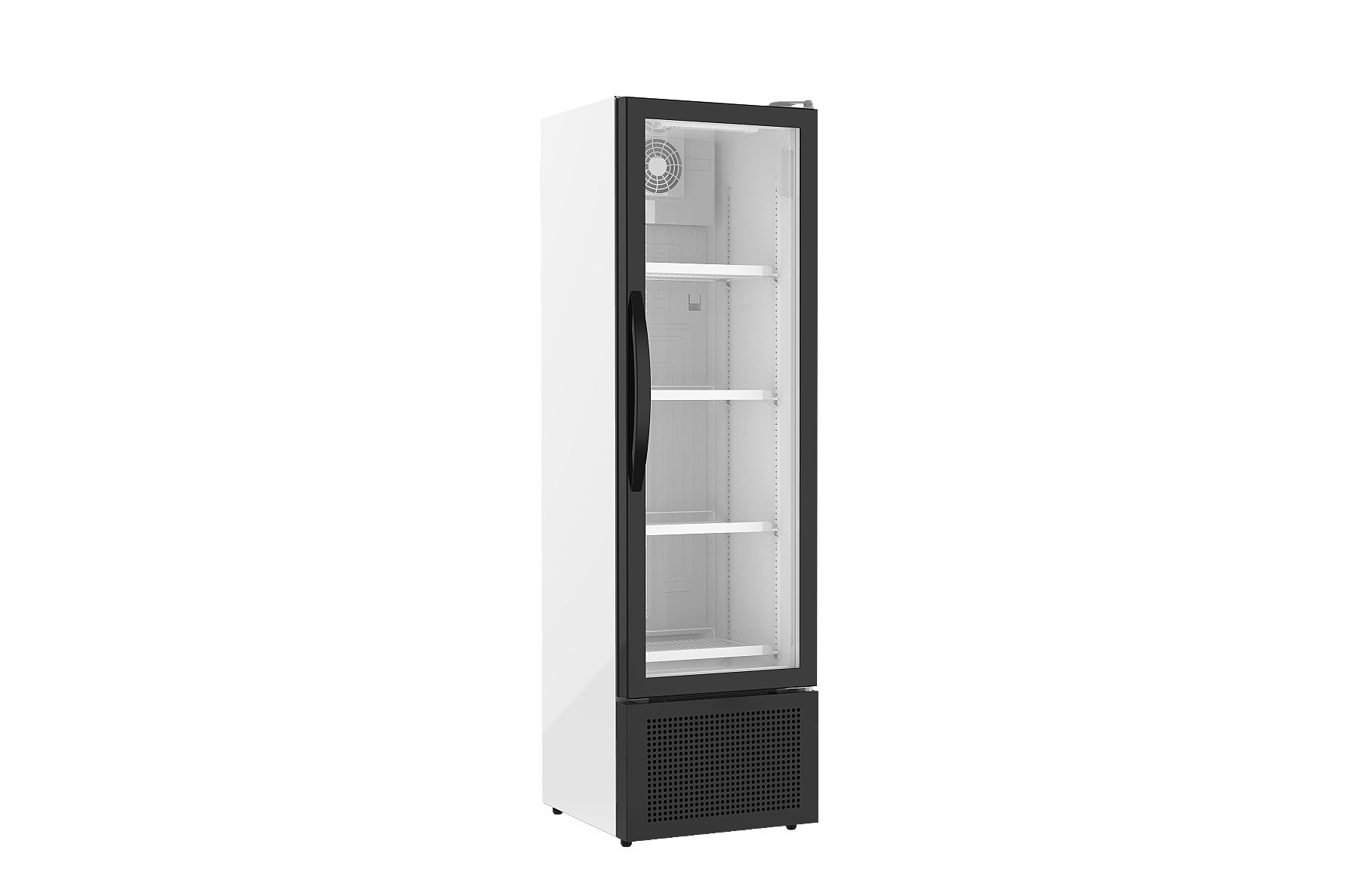

USS 155 DTK R64 CC2 is a single-door bottle cooler with a 154-liter gross volume, designed for chilled display of 330 ml cans and 500 ml bottles. It features a double-tempered, argon-filled, low-E glass door, an aluminum frame, mechanical thermostat and top LED interior lighting. Four adjustable shelves and an operating range of -18/-23 °C make it suitable for beverage retail and HoReCa settings, with R600a refrigerant.

Get a QuoteAdd to Favorite

Product Technical Specifications

Available Energy Class
:
D
Energy Consumption
:
1,239 kWh/24h
Gross Volume (L)
:
154
Climate Class
:
CC2
Operating Temperature Range
:
-18/-23 °C
Voltage/Frequency (V/Hz)
:
230/50
Refrigerant Gas
:
R600a
Facing (330 ml can)
:
5 pcs
330 ml cans
:
140 pcs
500 ml cans
:
97 pcs
500 ml bottles
:
97 pcs

Construction

Outer Body
:
DKP
Outer Body Paint
:
White Powder (optional)
Inner Liner
:
Galvanized
Inner Liner Paint
:
White (optional)
Kickplate
:
DKP
Insulation
:
Polyurethane
Insulation Density
:
32 / 36 kg/m3

Dimensions

Dimensions (W x D x H mm) without Packaging
:
435x549x1519
Dimensions (W x D x H mm) with Packaging
:
-
Weight without Packaging (kg)
:
53
Weight with Packaging (kg)
:
63
Shelf (WxD) mm
:
340x276
Footprint Area
:
0,24 m2
Display Area
:
0,39 m2

Standard Equipment and Options

Shelves
:
4 pcs
Shelf strips
:
4 pcs
Door (WxH) mm
:
430x1192
Thermostat
:
Mechanical
Interior Lighting
:
Top LED
Door
:
Aluminum
Door lighting
:
None
Door Glass
:
Double tempered + argon + low-e
Lock
:
None
Feet
:
4 plastic feet
Shelves
:
4 pcs, with 4 shelf stripes

Loading Capacities

Loading Capacity (20')
:
24
Loading Capacity (40')
:
50
Loading Capacity (40' HC)
:
72
Loading Capacity (13.6 Truck)
:
81
