USS 1200 D2K HV UCOOL NOVA R23

Product Sheet

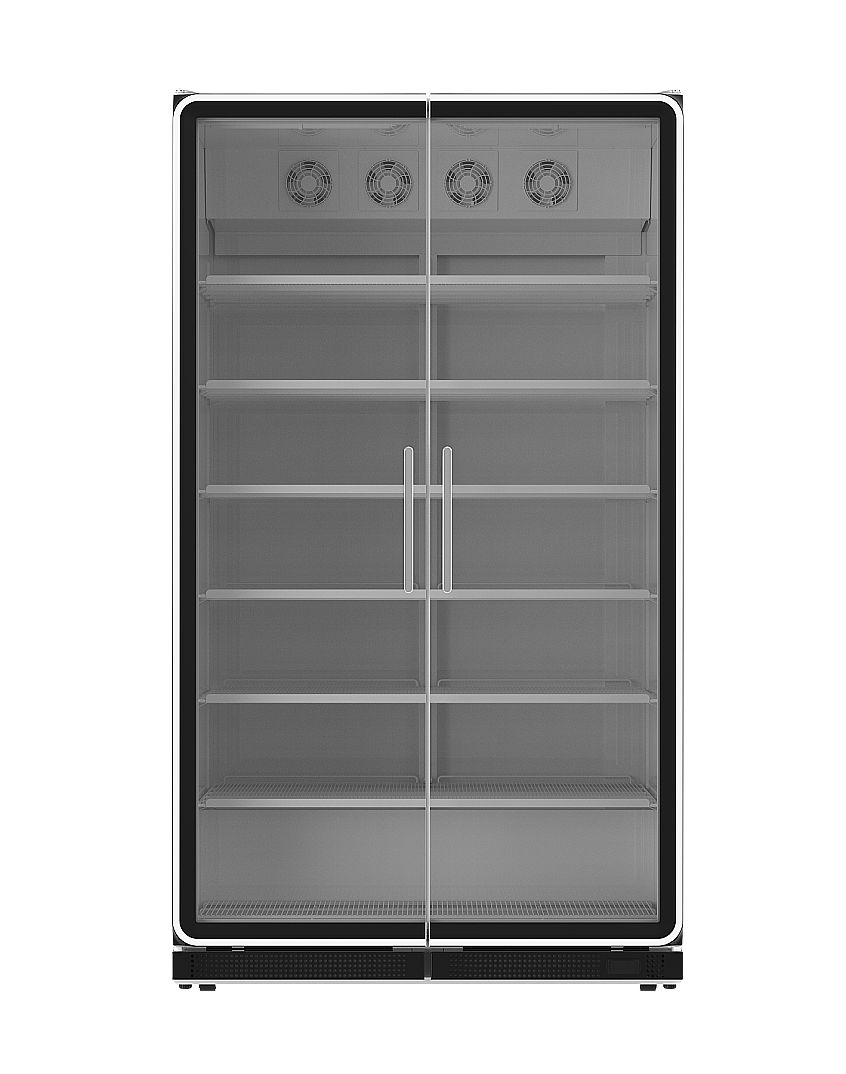

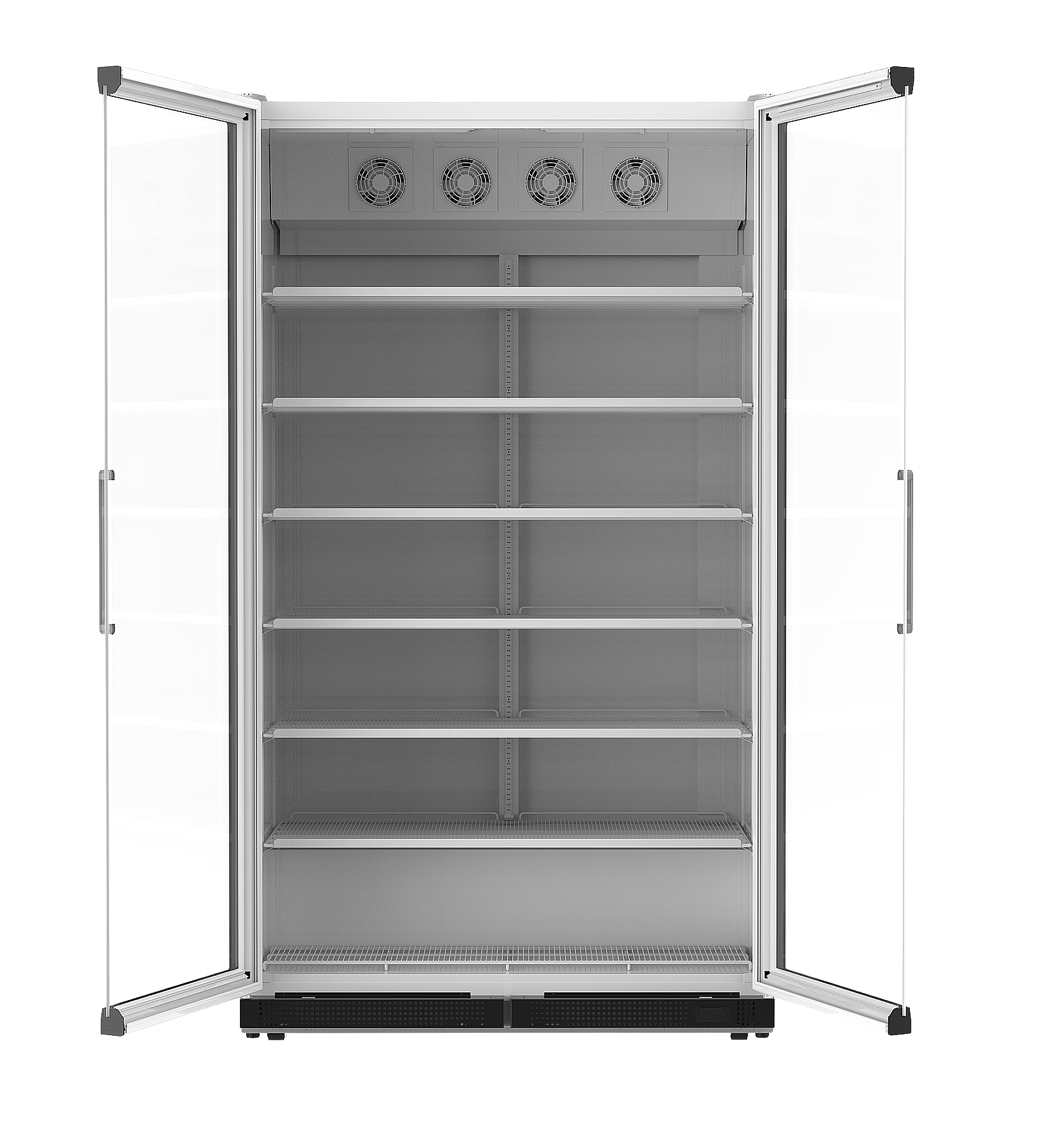

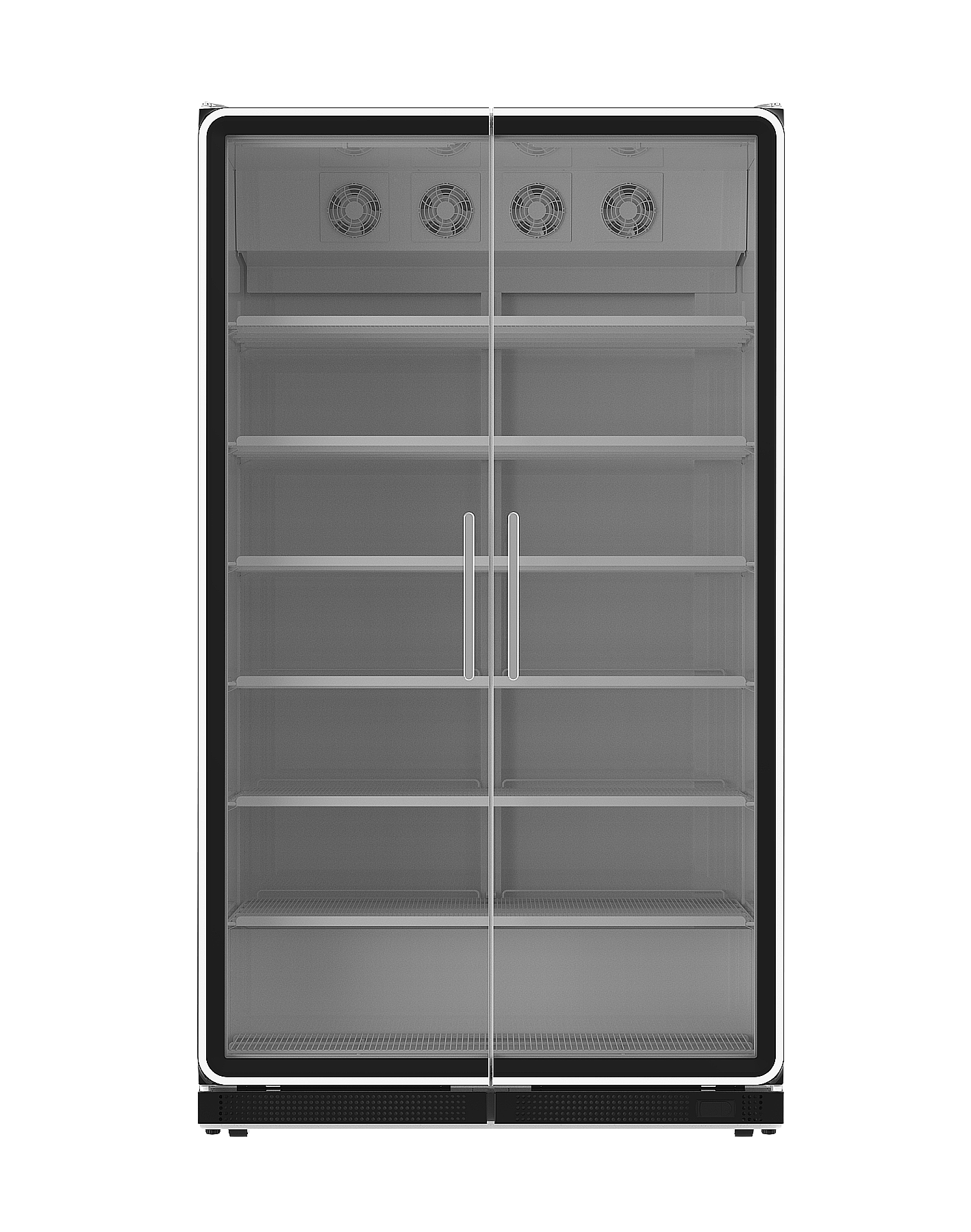

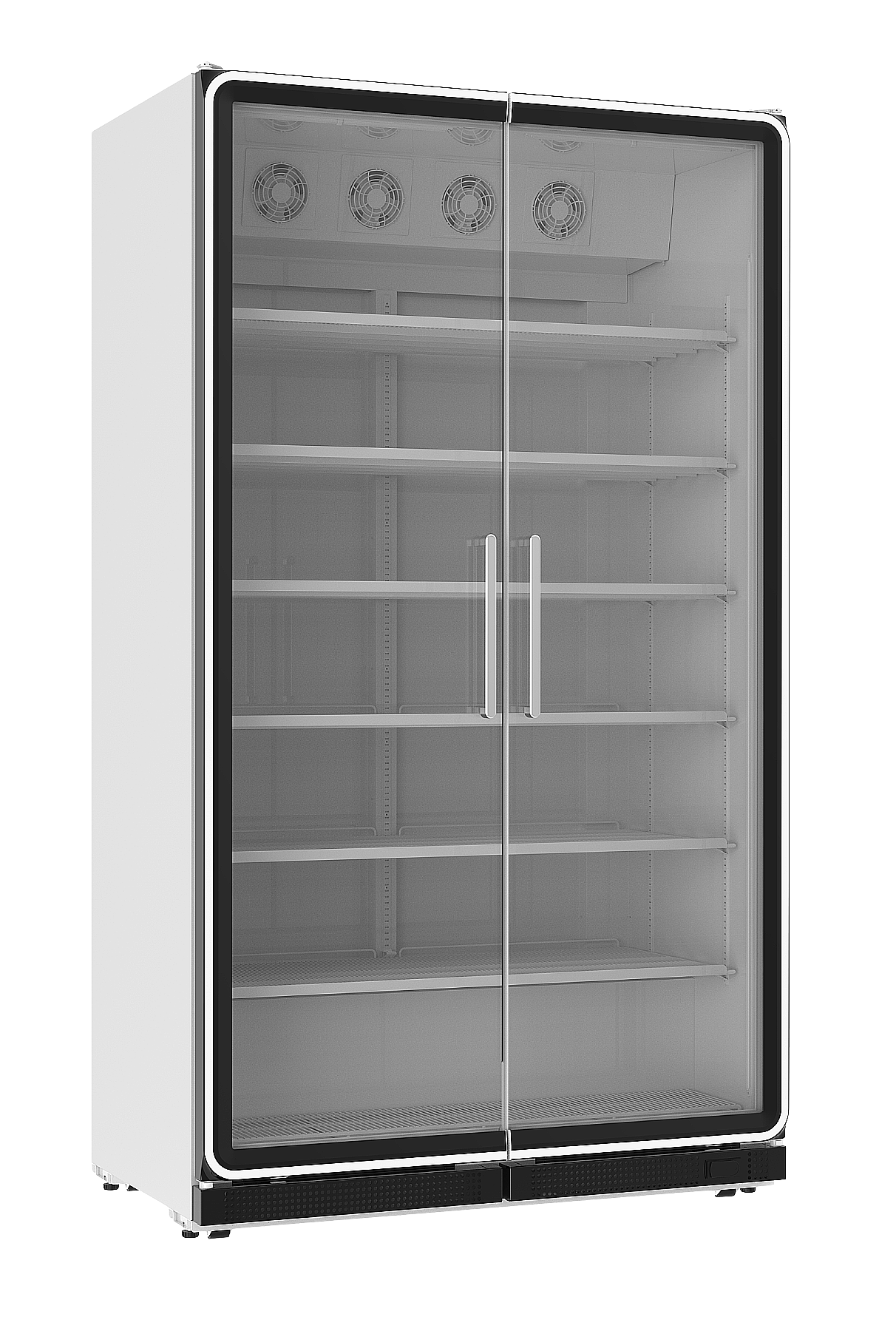

The USS 1200 NOVA is a pillarless double-door bottle cooler with 1,233 litres of gross volume and a 1.57 m² display area. LED lighting around the entire door frame, a dedicated advertising space on the door and an elastomeric seal in your preferred colour maximise visibility and brand presence. It uses R290 natural refrigerant.

Get a QuoteAdd to Favorite

Product Technical Specifications

Available Energy Class
:
C
Energy Consumption
:
3.228 kWh/24h
Gross Volume (L)
:
1233
Net Volume (L)
:
760
Climate Class
:
CC2
Recommended Ambient
:
32.2 – 65 °C
Package Temperature
:
K4 (+1 / +9 °C)
Voltage/Frequency (V/Hz)
:
230/50
Power (W)
:
870
Current (A)
:
4.2
Refrigerant Gas
:
R290
Facing (330 ml can)
:
16 pcs
330 ml cans
:
1 280 pcs
500 ml cans
:
768 pcs
500 ml bottles
:
608 pcs

Construction

Outer Body
:
DKP
Outer Body Paint
:
White Powder (optional)
Inner Liner
:
Galvanized
Inner Liner Paint
:
White (optional)
Kickplate
:
DKP
Insulation
:
Polyurethane
Insulation Density
:
32 / 36 kg/m3

Dimensions

External Dimensions (W x D x H mm)
:
1200 x 788 x 2137
Internal Dimensions (W x D x H mm)
:
1123 x 599 x 1901
Shelf (W x D) mm
:
1110 x 475
Footprint Area
:
0,945 m2
Display Area
:
1,57 m2
Weight without Packaging (kg)
:
202 (net)
Weight with Packaging (kg)
:
214 (gross)

Standard Equipment and Options

Shelves (incl. base shelf)
:
6 + 1 pcs
Shelf strips
:
8 pcs
Door (W x H) mm
:
593 x 1991
Thermostat
:
Electronic
Interior Lighting
:
Top and side LED (right and left)
Door
:
Aluminum
Door Lighting
:
LED around the entire frame
Door Glass
:
Double tempered + argon + low-e
Lock
:
None
Feet
:
2 adjustable feet + 4 wheels Ø23
Shelves
:
6 + 1 pcs, with 8 shelf strips
